Reading the report¶

teloclip extend can emit two reports, and they answer different questions.

The Markdown report is described first; the HTML report is covered at the end.

Pass --stats-report a path to write a file, - for stdout, or omit the option and it goes to stderr interleaved with the log.

Summary¶

| Metric                        |             Value |
| Mode                          | extension applied |
| Contigs in assembly           |                 1 |
| Contigs with overhang support |                 1 |
| Contigs extended              |                 1 |
| Contig ends extended          |            2 of 2 |
| Net bases gained              |               373 |
| Bases trimmed back            |                 2 |
| Raw overhang bases grafted    |               375 |
| Motifs counted                |    CCCTAA, TTAGGG |
| Total motif gain              |               +61 |
| Terminal screening window     |          1,000 bp |
| Contigs excluded              |                 0 |
| Warnings                      |                 0 |

The three length figures are distinct and worth reading together:

• Net bases gained — how much longer the assembly actually is
• Bases trimmed back — assembly consensus discarded to graft the clips on
• Raw overhang bases grafted — clipped read bases added, the sum of the two

Contig ends extended is the quickest sanity check. Compare it against twice your chromosome count.

Extensions Applied¶

| Contig | Original bp | Final bp | Left +bp | Right +bp | Total +bp | ... | Left trim | Right trim |
| chr1   |   6,030,967 | 6,031,340|     +160 |      +213 |      +373 | ... |         2 |          0 |

The +bp columns are net: the overhang grafted at that end, less the contig bases trimmed to make room. So Original bp + Total +bp = Final bp on every row — an identity you can check against the sequences.

The trim columns show what was given up. A large trim for a small gain deserves a look; teloclip's ranking avoids that trade, but the numbers let you confirm.

The read name columns identify exactly which read supplied each extension, so you can pull it from the BAM and inspect it.

Telomere Motif Analysis¶

Only present with --count-motifs.

| Contig | End   | Motif  | Window bp |  Pre | Post | Gain |
| chr1   | left  | CCCTAA |     1,162 |    2 |   29 |  +27 |
| chr1   | right | TTAGGG |     1,213 |    1 |   35 |  +34 |

Pre counts the --screen-terminal-bases window of the original contig; Post counts that same window plus what was added at that end, so the two are comparable.

The window is reported as actually used. For contigs shorter than twice the requested length it is halved, and the table shows the reduced figure.

Expect gain at the end where that motif belongs: CCCTAA at the 5' end and TTAGGG at the 3' end for the canonical vertebrate repeat. Gain of zero is a legitimate result — it means the extension added no telomeric sequence.

Per-Contig Overhang Support¶

Read counts and the longest overhang seen at each end.

The longest overhang is not always the one used. A longer clip anchored further inside the contig can contribute less novel sequence, and clips containing long homopolymer runs are rejected. Where Longest exceeds the applied extension, one of those applied.

Contigs With Anomalous Overhang Coverage¶

Present only when something was flagged.

These ends carry far more clipped reads than the rest of the assembly, computed with a median/MAD statistic on the high tail. That pattern usually means a collapsed repeat, an rDNA array, or an organellar contig attracting reads from across the assembly — cases where extending from one read is not meaningful.

They are not excluded. Whether extension is appropriate is a judgement about your assembly. Review them, and re-run with --exclude-contigs if you agree.

Flagging is skipped on assemblies with fewer than 8 contigs, where the spread carries too little information to call anything anomalous. It reports nothing rather than guessing.

Excluded Contigs¶

Contigs you named with --exclude-contigs or --exclude-contigs-file. They still appear in the output FASTA, unmodified and in their original position.

Warnings¶

Per-contig problems: extensions rejected for insufficient net gain, overhangs rejected for homopolymer content, contigs in the index but missing from the FASTA. Worth reading even when the run succeeds.

The HTML report¶

--html-report PATH writes a single self-contained file: no CDN, no separate stylesheet, nothing fetched at open time. It can be emailed, copied off a cluster, or archived and still render years later.

It repeats the summary and extensions table, then adds things the Markdown report cannot express: three charts and the read-level alignments.

All three charts share a convention. Blue is the left end of a contig, orange the right. Marks are keyboard-focusable and show the same detail on focus as on hover. Clicking any mark selects that contig in all three charts at once, so an end that looks unremarkable in one view can be found in the others; the rest recede rather than disappearing, because the distribution is the context for the selection. Press Escape, or click the background of any chart, to clear. Every chart has a table view below it, so no value is reachable only by hovering.

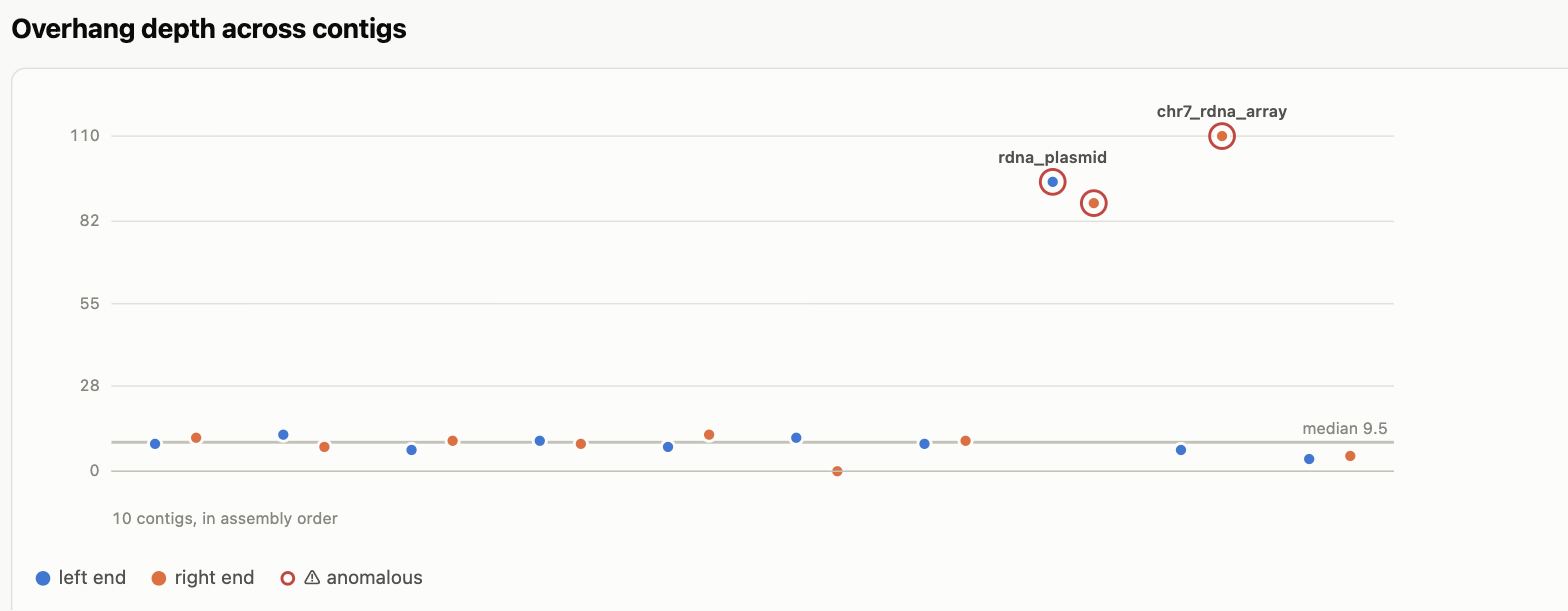

Overhang depth across contigs¶

A strip plot with one point per contig end against a median reference line.

The shape is the message: a healthy assembly is a flat band near the median. Points far above it are ringed, labelled with the contig name, and listed in the anomalous-coverage section.

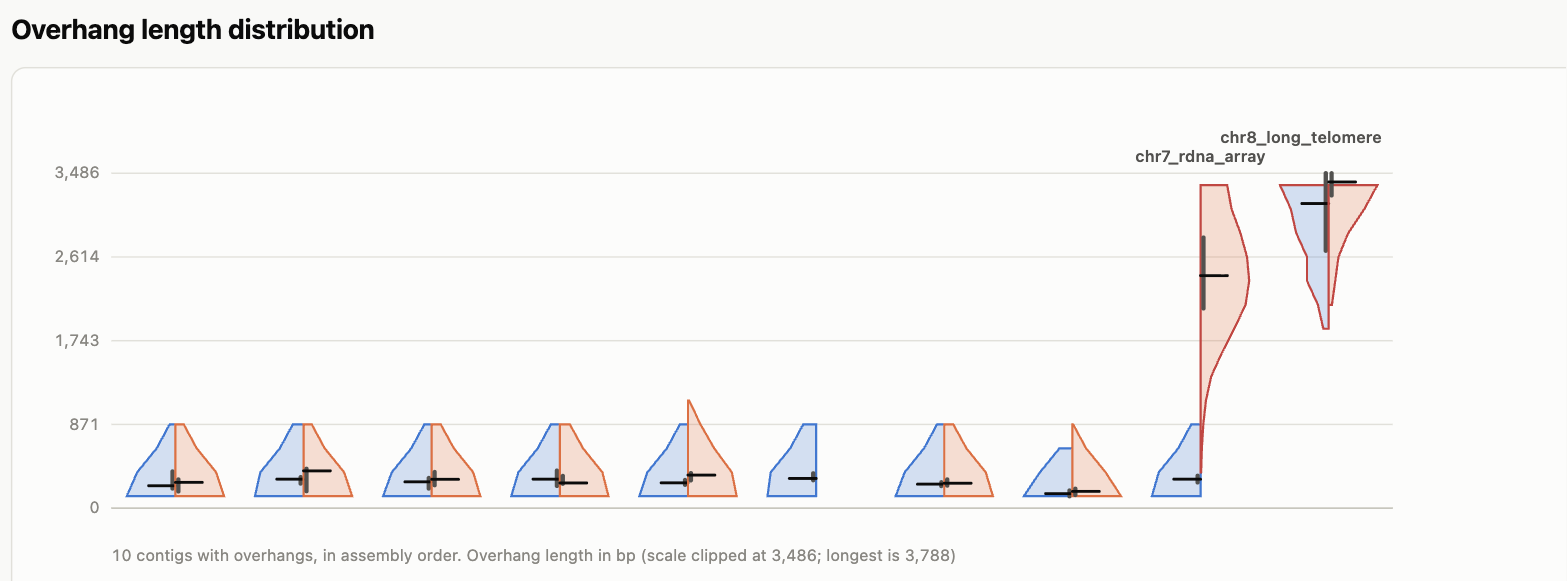

Overhang length distribution¶

Depth says how many reads support an end. This says how far they reach past it, which is what determines how much sequence an extension can actually recover — a tight distribution at a few hundred bases reads very differently from a broad one running into kilobases, and neither is visible in a count.

Each contig is one shape, split at its centre line: the left half is the left end, the right half the right end. Width is the proportion of reads at that length, the dark tick is the median, and the short rule beside it is the interquartile range.

Two things are worth knowing about how it is drawn:

• Ends with fewer than four reads are drawn as individual points, not as a curve. A distribution estimated from three reads describes the estimator rather than the data.
• The length axis is clipped at the 99th percentile so that a single read running far past a contig end cannot flatten every other shape into a line. When that happens the caption says so and names the true longest overhang, so the figure you are looking for is never hidden by the clip.

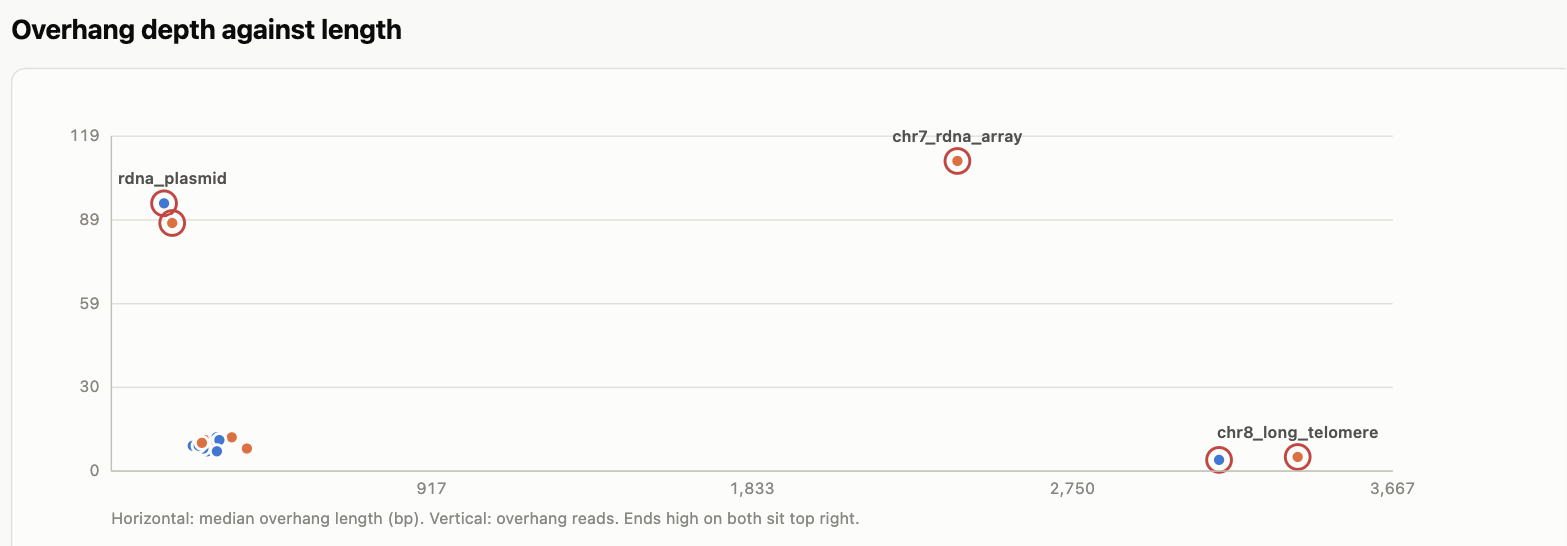

Overhang depth against length¶

One point per contig end, depth against median overhang length. This is where the two preceding charts are reconciled, and where the corner a point lands in tells you what kind of end it is:

Hovering a point gives the full figures for that end: contig length, depth, median and longest overhang, the best net gain available, and which anomaly flags apply.

Overhang alignments¶

One scrollable block per contig end, showing every supporting read laid out against the terminus:

          -20        0        +20
           |         |         |
contig     ACGTACGT--ACCCTAACCCTGCTAGATT…
▸ read_1  CCCTAACCCT--ACCCTAACCCTGCTAGATT…
  read_2  CCCTAACCCTNNACCCTAACCCTGCTAGATT…
  read_3      TAACCCT--ACCC--ACCCTGCTAGATT…

• Grey is the anchored portion of the read — the part that aligned.
• Colour is the soft clip, in that end's series colour.
• The vertical rule is the contig/overhang boundary.
• The ruler across the top is in contig bases with 0 at the terminus, negative outside the contig and positive inside it.
• ▸ marks the read the extension actually used.
• ⇆ marks a read that overhangs both ends of the contig, which usually means a very short contig or a circular molecule.
• Highlighted bases are motif matches, when --count-motifs was given.

Reads are placed by walking their CIGAR, so an indel shifts a read against the reference exactly as the aligner recorded it. A deletion leaves the read gapped (-) where the contig still has bases; an insertion opens a column in every other row, including the contig, so the rows below stay aligned. Pasting read sequence beside the reference instead would drift by one column per indel and make a good alignment look mismatched.

Hovering a row gives a table of the SAM record — alignment span, CIGAR, FLAG, MAPQ, anchor and clip lengths — alongside what the read contributes and what it costs in trimming.

The anchored region shown is at least 500 bases, or the longest anchor among the reads at that end if that is longer, capped at 2,000 and never more than the contig itself.

This view answers, in one place, the questions that otherwise require exporting reads and opening an alignment viewer:

• Do the clips agree? Reads telling the same story is the evidence that the overhang is real. Reads disagreeing past the rule suggests non-specific alignment.
• Does the anchor match the contig? Compare the grey region against the contig row directly above it. Disagreement there means the read is not placed where it claims.
• Is the repeat in the right place? Motif highlighting should accumulate past the rule, not inside the contig.
• Was the right read chosen? The marked read is shown among the candidates it beat, with its trim cost visible.

Blocks open scrolled to the terminus. --html-max-reads (default 25) caps the rows per end; the reads contributing the most sequence come first and the remainder are counted in a note beneath. Clips are drawn to 300 bases, which is well past the point of reading them base by base.

Provenance¶

The report closes with the teloclip version, the time it was generated, and the full command that produced it. A report is an artefact people keep and share, so it has to be traceable back to the run behind it without relying on where the file happens to sit.
